void set_pwm_param(TIM_HandleTypeDef htim, uint32_t Channel, uint32_t freq, uint16_t duty)
{

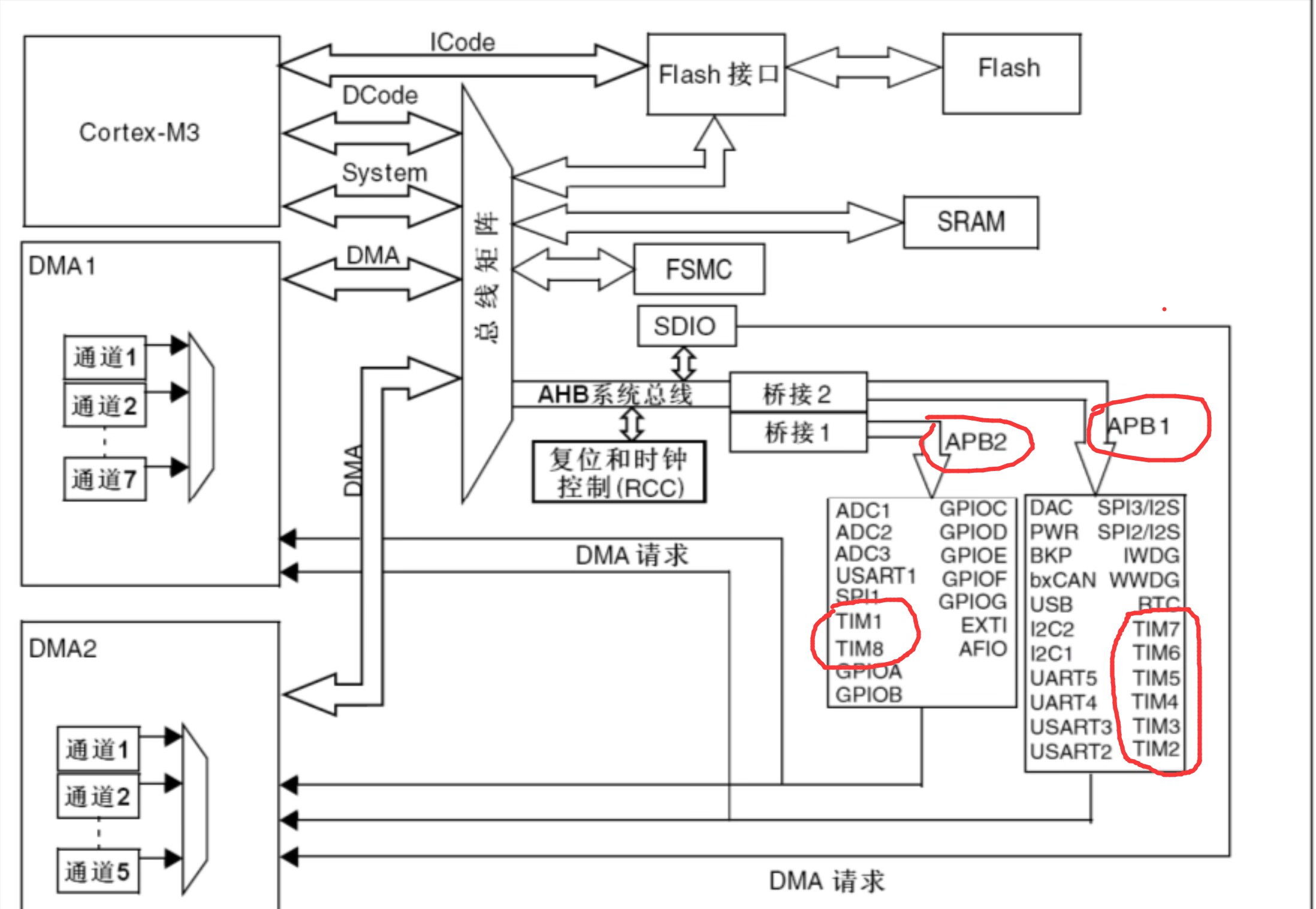

    uint16_t prescaler = 72-1;
    uint64_t tim_clk_freq = 72000000;
    //计算PWM频率，所对应的自动重装载   ---> ARR = 主频 / (预分�?+1) / 预期PWM频率(Hz) - 1
    float pwm_freq_arr  = (tim_clk_freq * 1.0) / (prescaler+1) / freq * 1.0 - 1;
    //计算PWM占空比，对应比较寄存器的 ---> CCR = 预期占空�? * (自动重装载�??+1)
    //占空比则由捕/比较寄存器（TIMx_CRx）寄存器决定。占空比:duty = Pluse / (ARR+1)
    float pwm_duty_pulse = duty * 1.0 / 100 * (pwm_freq_arr + 1);

    //配置PSC预分频
    __HAL_TIM_SET_PRESCALER(&htim, prescaler);
    //配置PWM频率 ARR
    __HAL_TIM_SetAutoreload(&htim, (uint16_t)pwm_freq_arr);
    //配置PWM占空比
    __HAL_TIM_SetCompare(&htim, Channel, (uint16_t)pwm_duty_pulse);
//    printf("pwm_freq_arr:%.2f\r\n", pwm_freq_arr);
//    printf("pwm_duty_pulse:%.2f\r\n", pwm_duty_pulse);
}
